Designed for Your Frequency. Validated for Performance
Customized Antenna Design supports the development of antennas based on specific frequency, size, performance and application requirements. This service is ideal when standard antenna options cannot meet the required performance, mechanical constraints or operating environment needs.
Antenna performance is heavily influenced by enclosure design, PCB layout, material selection, connector choice, nearby components, and installation conditions. Without rigorous design and validation, issues such as impedance mismatching, weak radiation, low efficiency, or unstable wireless communication often emerge only during testing or deployment.
RF Station provides comprehensive antenna design consultation—covering design, simulation, optimization, prototype support, and measurement validation—to mitigate design risk before final implementation
When Would You Need This?
- Develop an antenna for a specific frequency band or wireless application
- Fit an antenna into limited product space or enclosure constraints
- Improve antenna gain, efficiency, VSWR or radiation performance
- Solve poor matching, weak signal or unstable communication issues
- Evaluate antenna behaviour before fabrication
- Optimize an existing antenna design
- Validate antenna performance through simulation and measurement
- Reduce trial-and-error during antenna development
Applications
- RF and microwave systems
- IoT devices
- Wireless communication products
- PCB antennas
- Patch antennas
- Wire antennas
- Embedded antennas
- Antenna arrays
- Antennas for product integration
- Custom antenna solutions for devices, platforms or systems

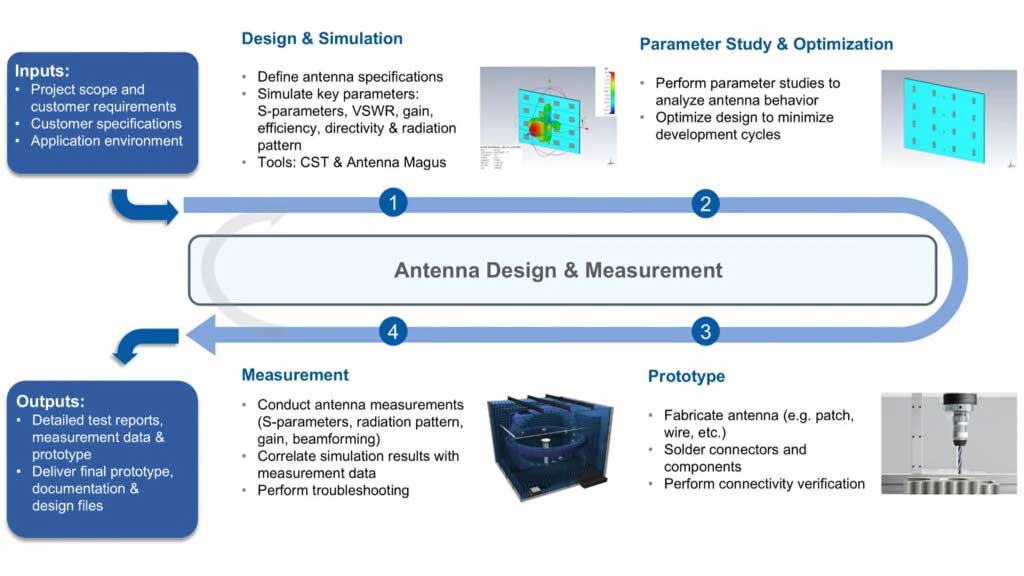

Our Holistic Approach
1. Inputs
We begin by reviewing the project scope, customer requirements, technical specifications and application environment. This includes understanding the target frequency, antenna type, size constraints, performance expectations and installation conditions.

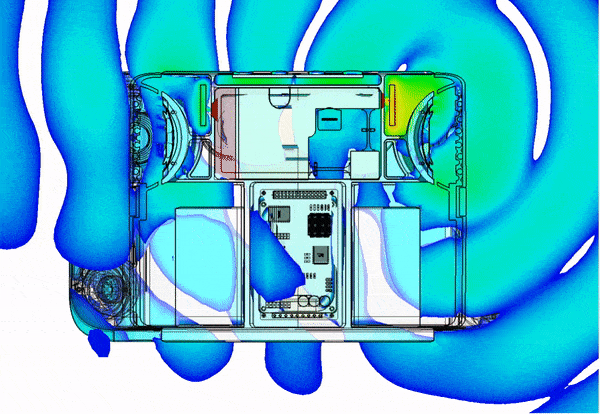

2. Design & Simulation
The antenna specifications are defined and the initial design is developed using CST Studio Suite and Antenna Magus. Key parameters such as S-parameters, VSWR, gain, efficiency, directivity and radiation pattern are simulated to evaluate the expected antenna performance.
3. Parameter Study & Optimisation
Different design parameters are studied to understand how they affect antenna behaviour. The design is then optimized to improve matching, radiation performance, efficiency and overall stability while reducing unnecessary trial-and-error during development.
4. Prototype
Once the design is refined, prototype support can be provided for antenna types such as patch, wire or other customized structures. This may include connector selection, component support and connectivity verification to ensure the prototype is ready for validation.
5. Measurement
Antenna measurements are conducted to validate actual performance, including S-parameters, radiation pattern, gain and beamforming performance where applicable. The measurement results are compared with simulation results to identify performance gaps and support troubleshooting.
6. Outputs
Outputs The final output may include detailed test reports, measurement data, prototype documentation, final prototype details and antenna design files for further development or implementation.
What We Support
Our service may include:
- Antenna specification review
- Antenna concept development
- Electromagnetic simulation using CST Studio Suite
- Antenna selection and design support using Antenna Magus
- S-parameter and VSWR analysis
- Gain, efficiency, directivity and radiation pattern evaluation
- Parameter study and design optimization
- Manufacturing tolerance and sensitivity analysis
- Prototype development support
- Connector and component selection support
- Antenna measurement and validation
- Simulation and measurement correlation
- Troubleshooting and design improvement recommendations
Frequently Asked Questions
Why should we consider a customized antenna instead of using a standard off-the-shelf antenna?
Standard antennas may not meet your product’s specific frequency, size, signal performance or installation requirements. PCBGT can help corporate engineering teams address these challenges through customised antenna design consultation, tailored to your product specifications and operating environment.
From compact IoT devices to wireless communication systems, our support helps optimise antenna performance while reducing unnecessary design iterations.
Can PCBGT help resolve weak signals or poor antenna performance?
Antenna performance can be affected by PCB layout, enclosure materials, nearby components, connector selection and installation conditions. PCBGT can support your team in identifying potential issues through antenna simulation, design optimization and measurement validation.
Key parameters such as VSWR, gain, efficiency and radiation patterns can be evaluated to help engineers understand performance gaps and identify areas for improvement.
What does the customized antenna design process include?
- PCBGT can support corporate projects across multiple development stages, from reviewing technical requirements and antenna specifications to electromagnetic simulation, design optimisation, prototype support and measurement validation.
Depending on the project scope, deliverables may include test reports, measurement data, prototype documentation and antenna design files to support further development and implementation.
